SKU: Magnetic Broaching Drill Large
Magnetic Broaching Drill Large
Need Expert Advice From Our Helpful Team Call Now 0808 275 9979
Product Information

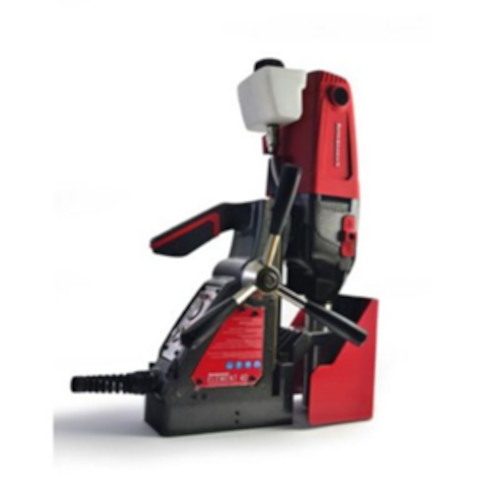

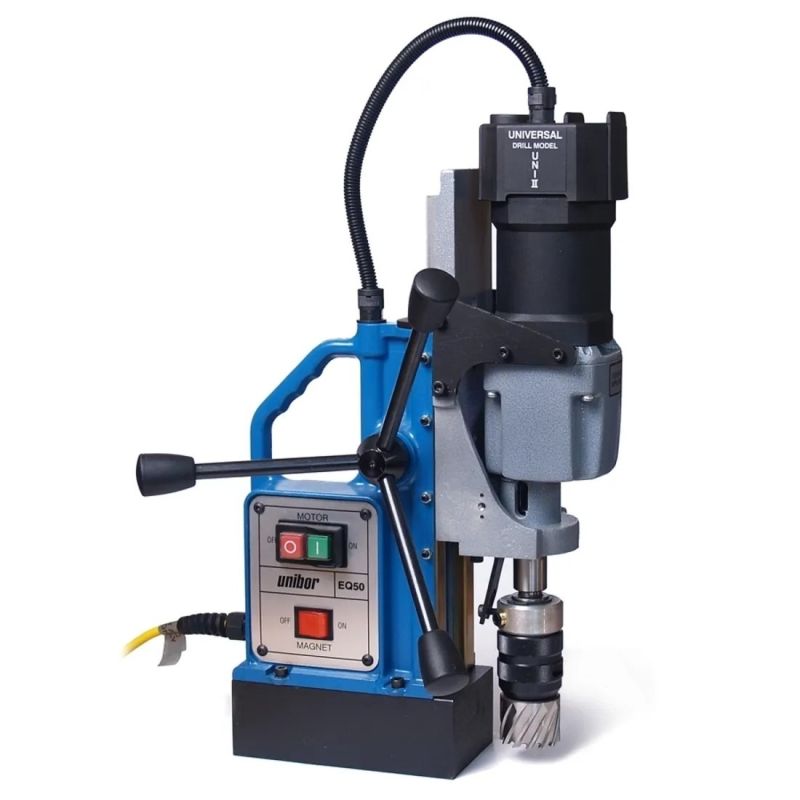

Also known as Mag Drills, Magnetic Drills, and Rotabroaches, these tools have a powerful motor to drill holes in a variety of metal surfaces. The high-powered magnet base holds the drill in place which gives you accurate burr-free cutting without having to apply pressure. Used in many settings including Steel Fabrication, Welding Shops, Maintenance, and general Construction. This model is 50mm x 50mm which drills 50mm diameter holes, up to 50mm deep. It’s110V so please add a transformer if you need one. Also, you will need to add at least one cutter – these are available in a variety of sizes.
Product Specifications
Max Cutter Diameter 50mm
Max Cutter Depth 50mm
Drill Chuck Capacity 13mm
Motor Power 1500W
Weight 15.8kg
Height 460mm
Arbor 19.05mm Weldon
Stroke 140mm
Tapping M20
No Load Low Gear 100-265rpm - High Gear 200-500 rpm
Magnetic Adhesion 13,500N
Magnet Size 200mm x 98mm
Voltage 110v
All Images are illustrative only - We may supply an item from a different manufacturer of similar specification
Product Specification
| Includes Fuel Cost | No |
|---|---|
| Blade Wear Cost | No |
| Delivery Class | Small |
Frequently Asked Questions
Not usually, since the cutters are designed to start drilling directly into the workpiece without the need for a pilot hole. But if you are drilling on curved or uneven surfaces it can be helpful. Add a pilot rod to your basket if needed.
The magnet force depends on the condition of the substrate, which is reduced by paint, zinc/scale coatings and rust.
Also, the substrate must be magnetic, the clamping surface and the magnetic foot must be clean and grease-free, and the surface must be completely smooth and level.
When drilling in steel of low thickness, an additional steel plate (minimum dimensions 100 x 200 x 20 mm) must be placed under the workpiece. Secure the steel plate to prevent it from falling.
