SKU: Magnetic Broaching Drill Small

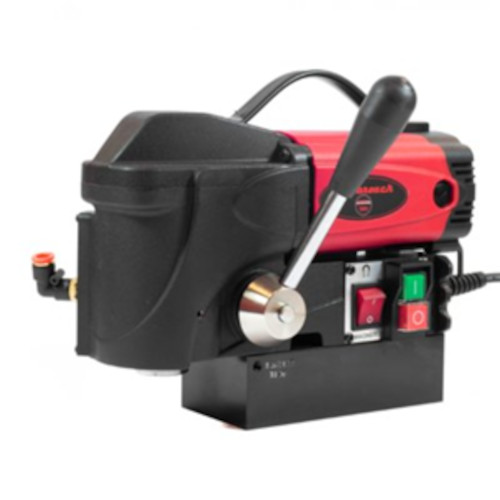

Magnetic Broaching Drill Small
Need Expert Advice From Our Helpful Team Call Now 0808 275 9979
Product Information
Also known as Mag Drills, Magnetic Drills, and Rotabroaches, these tools have a powerful motor to drill holes in a variety of metal surfaces. The high-powered magnet base holds the drill in place which gives you accurate burr-free cutting without having to apply pressure. Used in many settings including Steel Fabrication, Welding Shops, Maintenance, and general Construction. This model is 35mm x 25mm which drills 35mm diameter holes, up to 25mm deep. It’s110V so please add a transformer if you need one. Also, you will need to add at least one cutter – these are available in a variety of sizes.
Product Specifications
Max Cutter Diameter 35mm
Max Cutter Depth 25mm
Motor Power 1100W
Weight 10kg
Height 210mm
Arbor 19.05mm Weldon
Stroke 30mm
No Load 650rpm
Magnetic Adhesion 15,000N
Magnet Size 165mm x 80mm
Voltage 110v
All Images are illustrative only - We may supply an item from a different manufacturer of similar specification
Product Specification
| Includes Fuel Cost | No |
|---|---|
| Blade Wear Cost | No |
| Delivery Class | Small |
Frequently Asked Questions
Not usually, since the cutters are designed to start drilling directly into the workpiece without the need for a pilot hole. But if you are drilling on curved or uneven surfaces it can be helpful. Add a pilot rod to your basket if needed.
The magnet force depends on the condition of the substrate, which is reduced by paint, zinc/scale coatings and rust.
Also, the substrate must be magnetic, the clamping surface and the magnetic foot must be clean and grease-free, and the surface must be completely smooth and level.
When drilling in steel of low thickness, an additional steel plate (minimum dimensions 100 x 200 x 20 mm) must be placed under the workpiece. Secure the steel plate to prevent it from falling.
